Professonal packing machine for spaghetti or pasta noodles
High grade packing machine with weighting and packing system
upgrade the packaging of bulk, pasta, rice noodles and other noodles, and pack them into flat or shape products through materials during each process of automatic weighing, automatic sorting, conveying, and packaging.
Long Cut Pasta Packaging Machine-Spaghetti Packaging Machine
Noodle length:
100g～500g: (180mm～260mm)±5.0mm
200g～1000g:(240mm～260mm)±5.0mm
Noodle thickness:0.6mm～1.4mm
Noodle width:0.8mm～3.0mm
Packing speed:30～60bags/min
Weighting scope:100-1000g

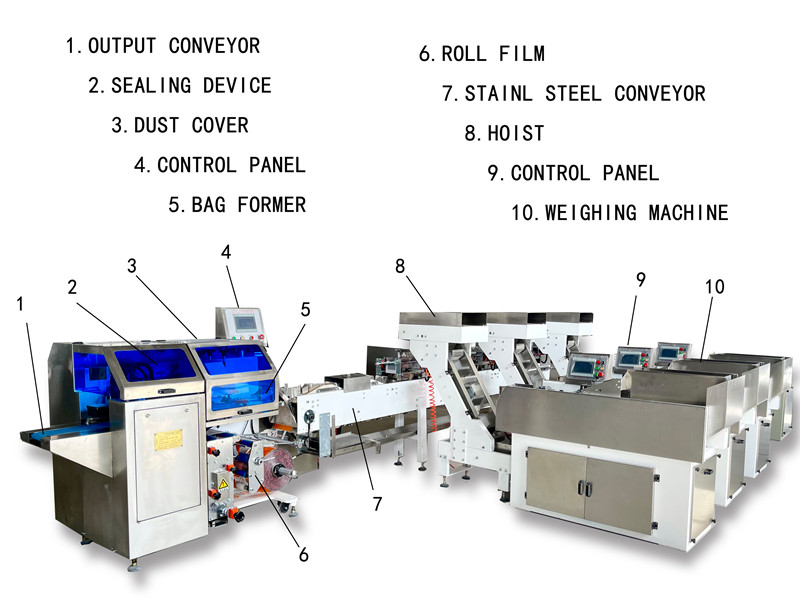

Spaghetti Packaging Machine Composition:
One packaging machine, two weighing machines, two pneumatic online buckets, and two online conveyor lines.
Application:
This spaghetti packaging machine is used for the packaging of bulk spaghetti with a length of 180mm to 260mm.
The machine completes the whole spaghetti packaging process through the steps of automatic weighing, bundling, lifting, feeding, packaging and forming, sealing and cutting.
There are two type of end system:multi motion/rotary cutter.To meet different customer demand
Spaghetti Packaging Machine Features:
The connection is controlled by centralized electrical appliances, intelligently controlling the speed, and the human-computer interaction is more reasonable.
Each spaghetti packing line only needs 2 to 3 people on duty, and the daily packaging capacity is about 6-8 tons of spaghetti, which is equivalent to the daily output of 10 people.
Select well-known brand electrical components, host frequency conversion speed regulation, servo motor control sorting, grouping and conveying of packaging film, with anti-cut and anti-air bag functions.
Use film roll instead of finished bags and save about $100 per day in consumables.
Accurate weighing, good compatibility, different gram weights can be packaged, with protective devices, high safety.
Product advantages:
1. Intelligent, digital servo motor control system.
2. Double driving vertical sealing, automatic opening and closing structure.
3. Tansverse sealing and cutting center can with packing height adjustment.
4. The feeding position in operation can be adjusted at any time.
5. LCD display, can be set, display operating status, parameters and fault.
6. Part of the conveyor has the advantages of compact structure , adopts the material box structure , solves, the conventional scraper structure need t be replaced frequently and appearance defects.
7. Has a unique automatic flush device, ensure that the qualified rate of the finished packaging vermicelli.
8. Color code tracking point automatic positioning, automatic with the standard; packaging bags, automatic measurement of memory.
9. With air defense, anti cutting function, saves the packaging cost.
10. Automatic weighing machine, host core system and stainless steel conveying line are exclusive patents.
11. The products are exported to the United States, Italy, Africa and other countries and are well received. It is a multi-year noodle packaging machine supplier for China's well-known enterprise COFCO group, the listed company Chen Keming Food Co., Ltd., the well-known brand golden dragon fish and the white elephant group.
